BT210V-G Small mini metal 210mm 600W lat

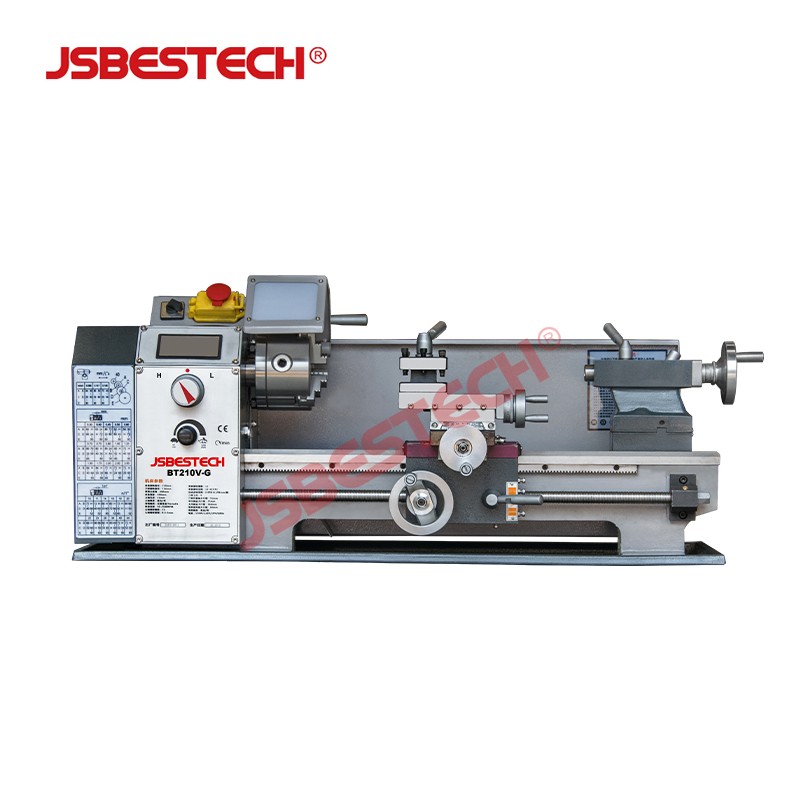

BT210V-G Small mini metal 210mm 600W lathe machine

Model:BT210V-G
Swing over bed:210mm
Max.swing over cross slide:134mm
Distance between centers:400mm
Width of bed:110mm
Spindle bore:21mm
Spindle speed range:50-2500rpm
Tailstock quill diameter:60mm
Taper in tailstock quill:MT2
Spindle drive motor(double speeds):600W
N.W/G.W:105/125KG
Packing Size:840*390*385mm

Product Detail

Turning diameter (Max.)	Ø210mm
Swing over cross slide	Ø140mm
Distance between centers	400mm
Width of bed	100mm
Spindle bore	Ø21mm
Spindle taper	MT3
Variable speed	50~2500rpm
Top slide travel	55mm
Cross slide travel	75mm
Max. section of tools	10x10mm
Range of metric threads	0.5~3mm
Range of inch threads	10~44T.P.l
Tailstock quill diameter	Ø22mm
Tailstock quill travel	60mm
Taper of tailstock quill	MT2
Brushless motor	550w
Voltage	110V~240V(1PH)
Packing size	900x450x450mm
