Metal Lathe

BT360A Wholesale 360mm metal bench lathe

Models:BT360A
Swing over bed:360mm(14")
Swing over cross slide:224mm(8-13/16")
Swing in gap diameter:502mm(19-3/4")
Length in gap:187mm
Center height:179mm(7")
Distance between centers:750mm(30") or 1000mm(40")
Spindle nose:D1-4
Taper of spindle bore:No5 morse
Spindle bore:38mm(1-1/2") Or 51mm
  • Product Detail
  • Accessories

BT360A Wholesale 360mm metal bench lathe
1)Widely useful, like home hobby, Education, Factory use ect, operation easy.
2)Various speeds and thread cutting function are avaiable with gear box.
3)Induction-hardened and ground prismatic bed made from cast iron.
4)High precision and hardened spindle.
5)Safety magnetic and lock key European-standard switch.
6)Cost-efficient,precise and stable value.

Turning diameter (Max.) Ø360mm
Swing over cross slide Ø224mm
Distance between centers 1000mm
Center heigh 179mm
Width of bed 187mm
Spindle nose D1-4/D1-5
Spindle bore Ø38mm/51mm(Optional)
Taper of spindle bore MT5
Spindle speed (8 steps) 70~2000rpm
Top slide travel 95mm
Cross slide travel 170mm
Max. section of tools 16x16mm
Range of metric threads (26 kinds) 0.4~7mm
Range of inch threads (34 kinds) 4~56 T.P.I
Lead screw diameter Ø22mm
Lead screw thread 3mm or 8T.P.I
Tailstock quill diameter Ø32mm
Tailstock quill travel 100mm
Taper of tailstock quill MT3
Motor power 1.5kw
Voltage 380V~440V (3PH)

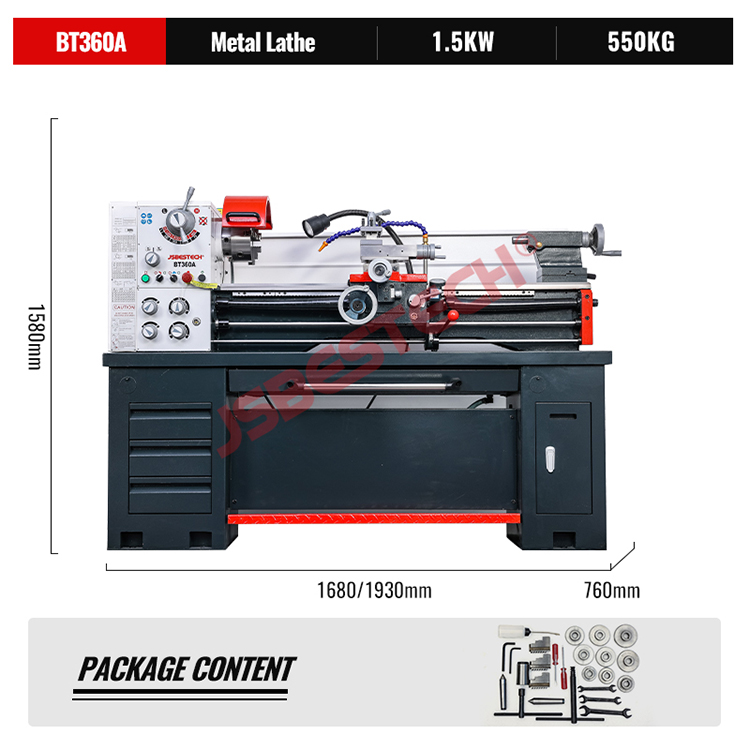

Packing size (1680/1930)x760x1580mm

Standard Acceccories
Optional accessories
3-jaw chuck
Cooling pump
Working lamp
Dead center MT3
Follow rest
Steady rest
Stand
Chip tray
Lead screw cover
Chuck cover
Working lamp
Live center MT3
2-axis digital readout
3-axis digital readout
Quick change tool post
Tapet turning attachment
