Turning diameter (Max.)	Ø510mm
Swing over cross slide	Ø305mm
Swing in gap diameter	Ø735mm
Distance between centers	1000/1500/2000/3000mm
Center heigh	255mm
Width of bed	350mm
Spindle nose	D1-8
Spindle bore	Ø80mm/105mm (Optional)
Taper of spindle bore	MT7/113(1:20) (Optional)
Spindle speed (12 steps)	25~1600rpm
Top slide travel	130mm
Cross slide travel	316mm
Max. section of tools	25x25mm
Range of metric threads (47 kinds)	0.2~14mm
Range of inch threads (60 kinds)	2~112T.P.I
Lead screw thread	6mm or 4T.P.I
Tailstock quill diameter	Ø75mm
Tailstock quill travel	180mm
Taper of tailstock quill	MT5
Motor power	7.5kw
Coolant pump motor	100w
Voltage	380V~440V (3PH)

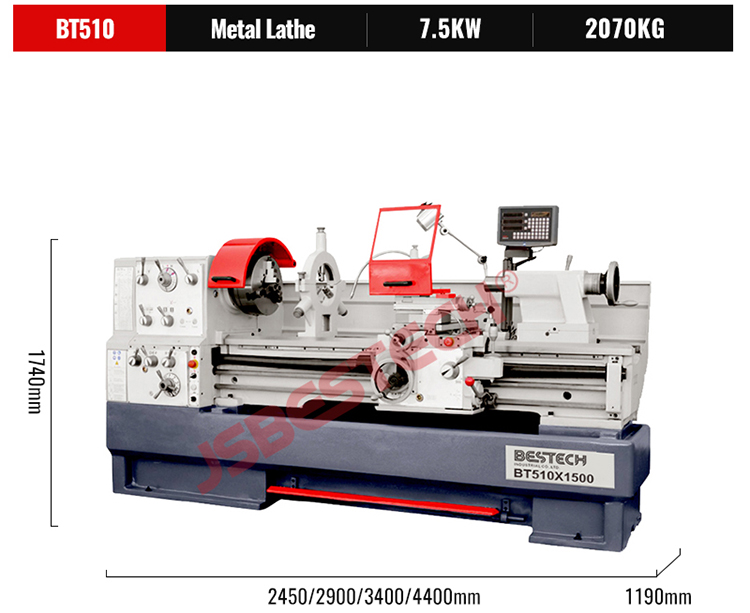

Packing size	(2450/2900/3400/4400)x1190x1740mm

Standard Accessories

3-jaw chuck (Ø315mm) Steady rest (Ø19~165mm) Face plate (Ø450mm) Foot brake Splash guard 4-jaw chuck (Ø350/400mm) Follow rest (Ø16~95mm) Coolant / Lamp system Chuck cover Toolbox & tools set

1)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba.  We can reply you within 1 hours on work days, and within 24 hours on holidays.
2)Q:About us, trading company or manufacture?

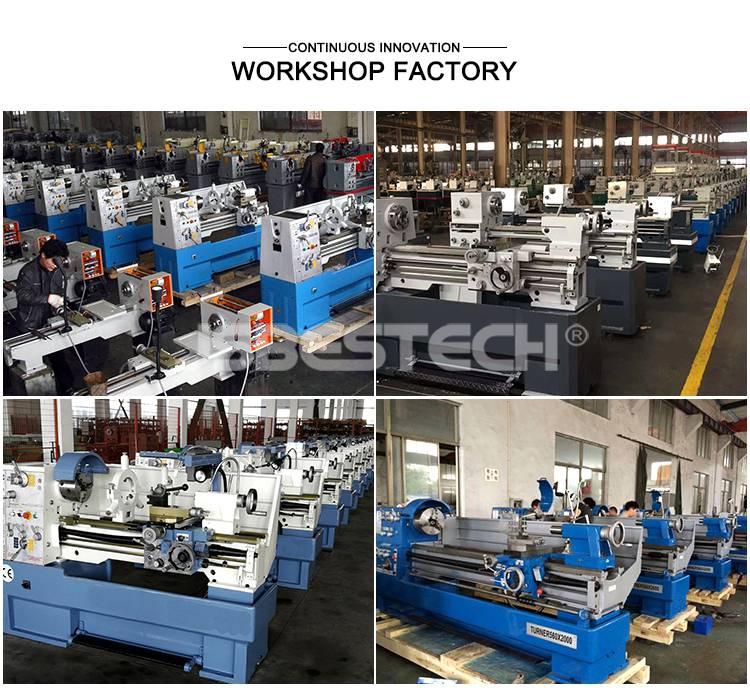

A: We are the manufacture with more than 15 years experience, welcom to visit our factory.
3)Q:Can we start with start with small quantity? What's the MOQ?
A:We can accept orders with 1 unit.
4)Q: Can I customized my products and packages?
A: Of course sure, you can. We accept OEM, make your trademark on your machine body and do the package with you need.
5)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website according to your request. Or you can let our sellers know what is your request secification or what is your parts, so let our sellers recommend suitable machine to you.
We do the machine more than 10 years, we are specialied, we have more than 10 QC contral the quality. Every machine will be tested more than 6 times from the machine little details.
6)Q: How long can I get the machine?
A: Some machines we have stock, when get your payment we can send you at once.
We can delivery the samples within 5-10 day after getting your payment.
Usually, we also can send you the mass goods within 45 days.

We want to know:
(1)What is your Industrial Voltage?
(2) We strongly suggest you tell us size, material of your workpiece for our evaluation, if possible, better to send us your workpiece drawing, so that we can recommend yuo mst suitable model!
