Metal Lathe

BT400A bench lathe machine price metal working lathe machine

Model:BT400
Max.swing over bed:400
Max.swing over cross slid:248mm
Swing in gap diameter:560mm
Height of center:200mm
Admist between:1000mm
Width of bed:205mm
Cutting tool max section:16*16mm
Cross slide width:140mm
Cross slide travel:208mm
Spindle bore:52mm
Spindle morse taper in bore:D1-5
Spindle taper:MT6
Spindle speed range:70-2000R.P.M.(35-2000R.P.M.);30-2500R.P.M
  • Product Detail
  • Accessories

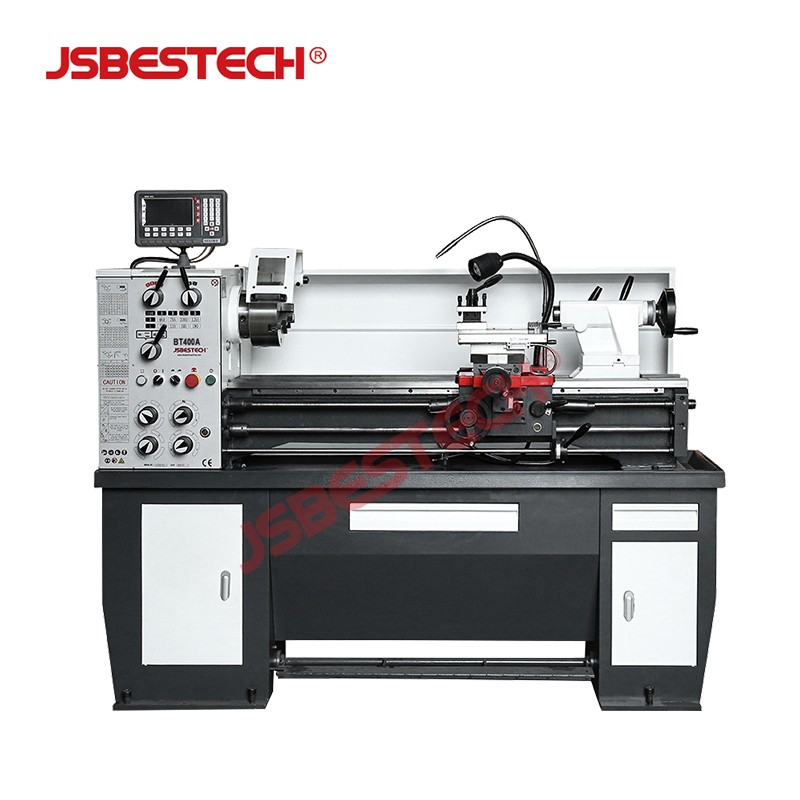

BT400A bench lathe machine price metal working lathe machine

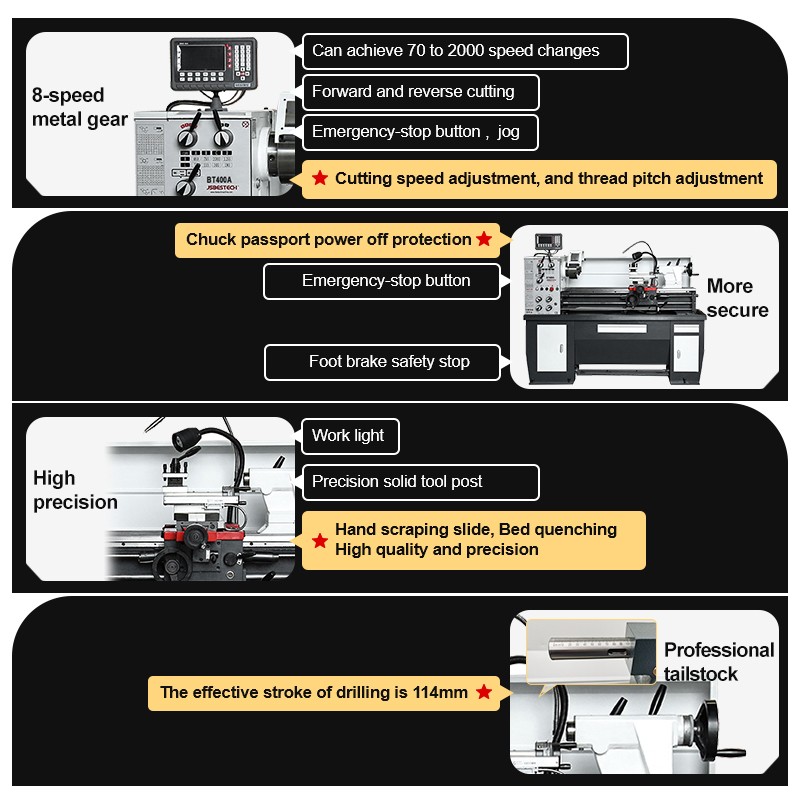

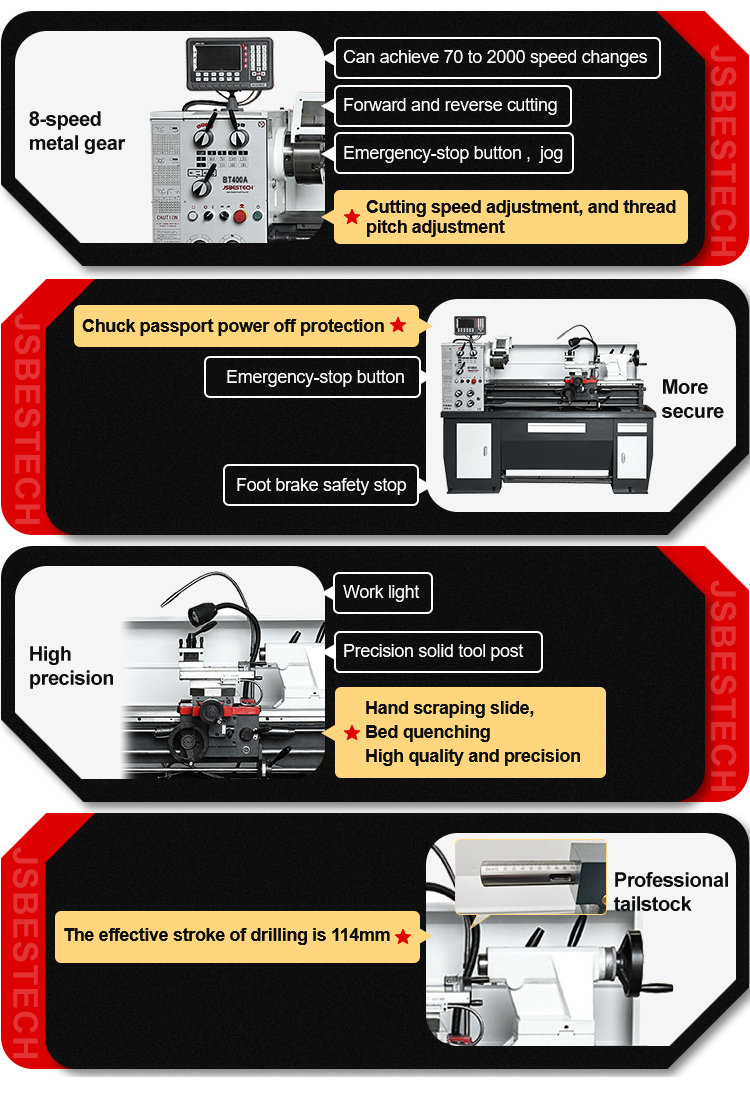

. Ideal for processing of steel, non-ferrous metals and plastics
· Electro-magnetic foot brake reduces downtime
· Hardened and polished toothed gears also in feed drive
· Practical, solid machine featuring a lead screw and feed rod
· Grey cast-iron machine bed, inductively hardened and precisely polished
· State-of-the-art spindle bedding with high-quality, angular ball bearings
· Machine base in heavy cast iron construction
· Easy, smooth and precisely adjustable speed and feed settings
· Pull-out chip tray allows for minimum space requirements
· Removable bridge for processing of work pieces with a large diameter

· Serially equipped with slip clutch

Turning diameter (Max.) Ø400mm
Swing over cross slide Ø248mm
Distance between centers 1000mm
Center heigh 200mm
Width of bed 205mm
Spindle nose D1-5
Spindle bore Ø52mm
Taper of spindle bore MT6
Spindle speed (8 steps) 70~2000rpm
Top slide travel 100mm
Cross slide travel 200mm
Max. section of tools 16x16mm
Range of metric threads (26 kinds) 0.4~7mm
Range of inch threads (34 kinds) 4~56 T.P.I
Lead screw diameter Ø22mm
Tailstock quill diameter Ø42mm
Tailstock quill travel 114mm
Taper of tailstock quill MT4
Motor power 2.2kw
Coolant pump motor 50w
Voltage/AC 380V~440V (3PH)

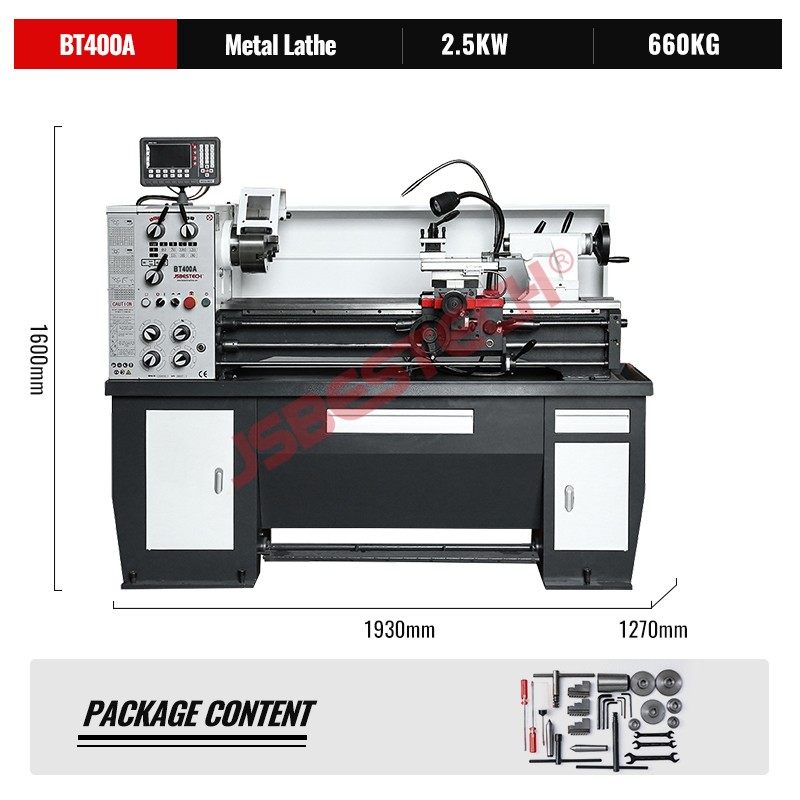

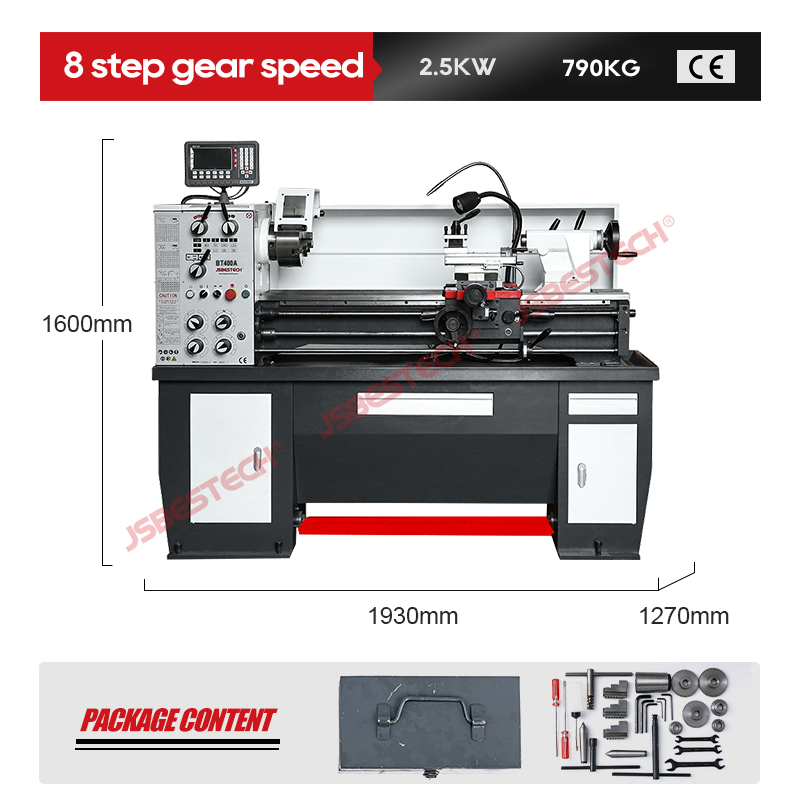

Packing size 1930x1270x1600mm

Standard Accessories
3-jaw chuck (K11-160)
4-jaw chuck (K72-200)
Chip tray
Stand
Face plate
Follow rest
Steady rest
Splash guard
