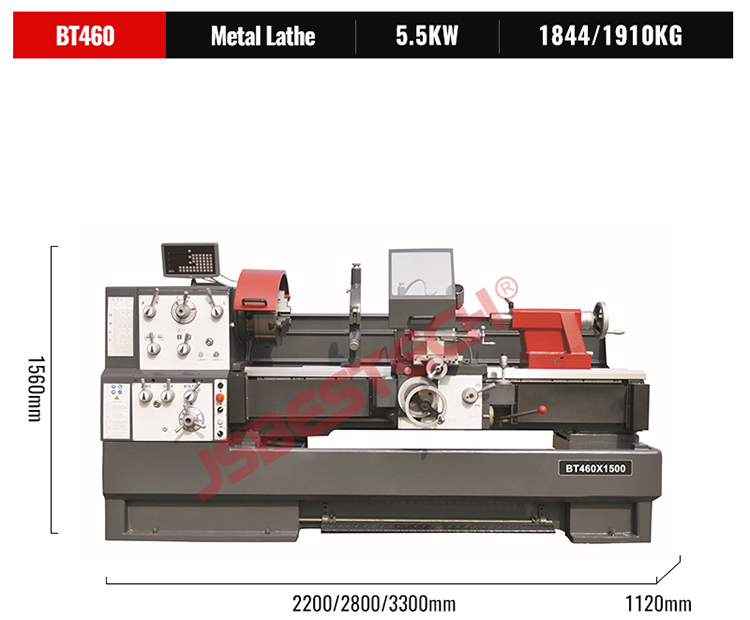

BT460 china iron lathe hardinge lathe for sale

Models:BT460
Swing over bed:460mm(18")
Swing over cross slide:270mm(10-3/4")
Swing in gap diameter:690mm(27-1/8")
Length in gap:165mm
Distance between centers:1000mm(40")/1500mm(60")/2000mm(80")

Product Detail
Accessories

Turning diameter (Max.)	Ø460mm
Swing over cross slide	Ø270mm
Swing in gap diameter	Ø690mm
Valid length of gap	165mm
Distance between centers	1000/1500/2000/3000mm
Center heigh	230mm
Width of bed	300mm
Spindle nose	D1-8
Spindle bore	Ø80mm
Taper of spindle bore	MT7
Spindle speed (12 steps)	25~2000rpm
Top slide travel	128mm
Cross slide travel	285mm
Max. section of tools	25x25mm
Range of metric threads (41 kinds)	0.1~14mm
Range of inch threads (60 kinds)	2~112T.P.I
Lead screw thread	6mm or 4T.P.I
Tailstock quill diameter	Ø60mm
Tailstock quill travel	130mm
Taper of tailstock quill	MT4
Motor power	5.5kw
Coolant pump power	100w
Voltage	380V~440V (3PH)
Packing size	(2200/2800/3300)x1120x1560mm

Standard Accessories

3-jaw chuck (Ø200/250mm)
Steady rest (Ø25~178mm)
Face plate (Ø350mm)
Foot brake
Splash guard
4-jaw chuck (Ø250/300mm)
Follow rest (Ø19~114mm)
Coolant / Lamp system
Chuck cover
Toolbox & tools set
